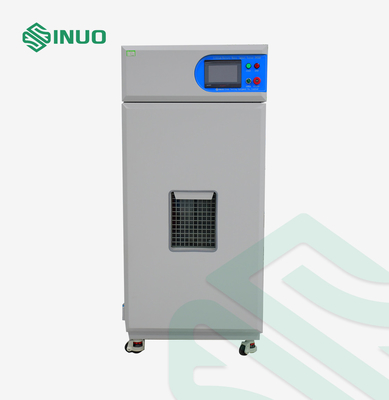

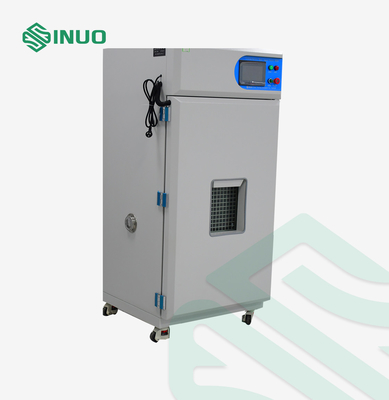

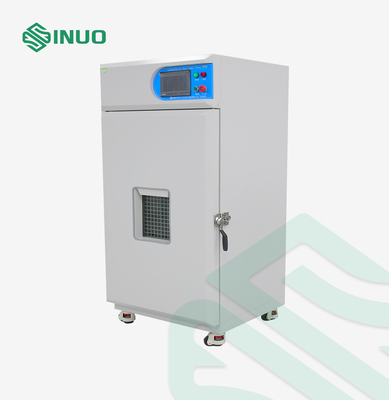

IEC 62133 Battery Testing Lithium Battery Drop Test Machine 1500mm

IEC 62133 Battery Testing Lithium Battery Drop Test Machine 1500mm

Markenbezeichnung:	Sinuo
Modellnummer:	SN5510-1500
MOQ:	1
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	10 Sets Per Month

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Place of Origin:

China

Zertifizierung:

Calibration Certificate (Cost Additional)

Drop height:

350～1500mm

Display accuracy:

1mm

Height error:

±5mm

Display Mode:

PID

Maximum weight of specimen:

5kg±100g

Maximum size of specimen:

L350×W180

Drop method:

Pneumatic drop

Lifting method:

Electric lift

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Beschreibung des Produkts

IEC 62133 Battery Testing Lithium Battery Drop Test Machine 1500mm

Complied Standards & Clauses

The equipment meets the test specifications of UL 1642, IEC62133-2012, etc.

Product Overview

This machine is suitable for free fall test of mobile phones (cell phones), mobile phone lithium batteries, walkie-talkies, electronic dictionaries, apartment intercoms, CD/MD/MP3, and other small consumer electronic products and parts.

Main features and functions of the equipment

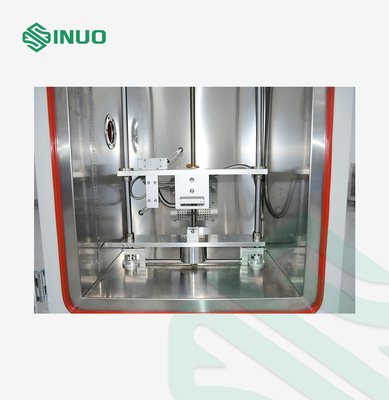

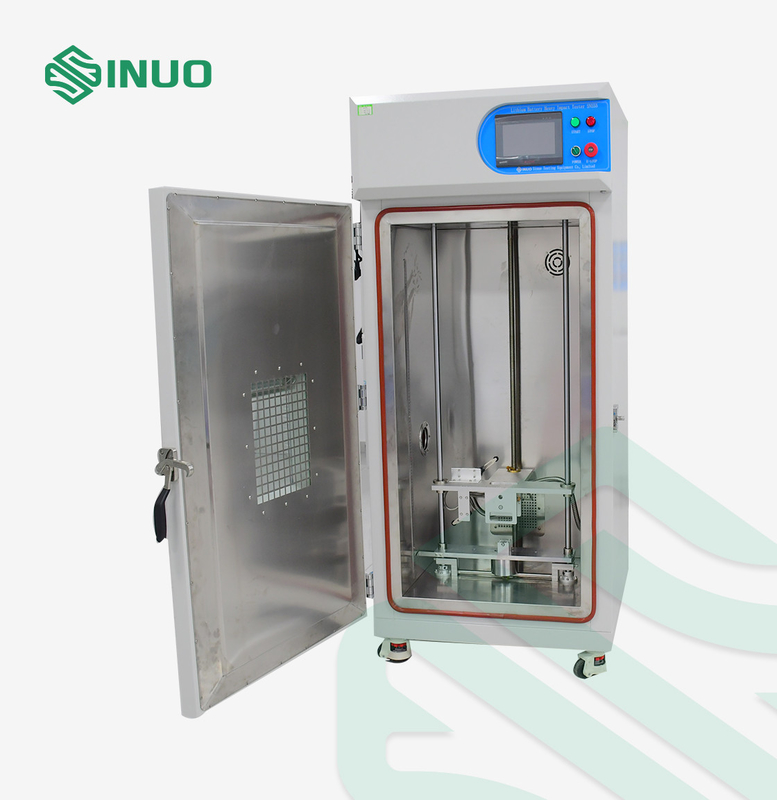

This machine adopts a pneumatic structure. The test piece is placed in a special fixture (adjustable stroke) and clamped firmly. Press the drop button, the cylinder is released, and the test piece will be subjected to a free fall test.

Technical Parameters

Drop height	350～1500mm (can be increased upon request)
Display accuracy	1mm
Height error	±5mm
Display Mode	PID
Maximum weight of specimen	5kg±100g
Maximum size of specimen	L350×W180
Drop Floor Medium	Steel plate (cement plate optional)
Clamping method	Pneumatic clamping
Drop method	Pneumatic drop
Lifting method	Electric lift
Use air pressure	＜2mpa (air source supplied)
Machine size	W650 x D560 x H1700mm
Height setting	Encoder display height, intelligent control (350~1500 digital display adjustable, very convenient for customers to use)
Monitor	The test area is equipped with a high-definition video surveillance system, which can be remotely controlled to ensure data accuracy; the picture is clear, with a pixel of ≥ 4 million pixels
Power supply	AC 220V±10% 50HZ
Power	300W
Machine weight	About 120KG
