EV Plug and Socket Test Equipment EV Connector Breaking Capacity Test System

EV Plug and Socket Test Equipment EV Connector Breaking Capacity Test System

Markenbezeichnung:	Sinuo
Modellnummer:	SNQC1005
MOQ:	1
Preis:	Customized
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	1 Sätze/Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Calibration Certificate (Cost Additional)

Fahrmethode:

Servomotor + elektrische Drehbewegung + Hilfspneumatikzylinder

Kontrollsystem:

PLC + 7-Zoll-HMI-Touchscreen

Bewegungstyp:

Hand- oder programmierbare automatische Bedienung

Beispielstrecke:

AC/DC-EV-Ladeanschlüsse, Industriestecker und -steckdosen

Testhub:

0-150 mm, Auflösung: 0,01 mm

Testfrequenz:

0·10 Zyklen/min (verstellbar)

Kraftsensorbereich:

0–500N

Testgeschwindigkeit:

0–900 mm/s, einstellbar über Touchscreen

Verpackung Informationen:

Andere

Versorgungsmaterial-Fähigkeit:

1 Sätze/Monat

Beschreibung des Produkts

EV Plug and Socket Test Equipment EV Connector Breaking Capacity Test System

Complied Standards & Clauses

This test equipment meets the requirements of IEC 62196-1:2022, etc.

Equipment Overview

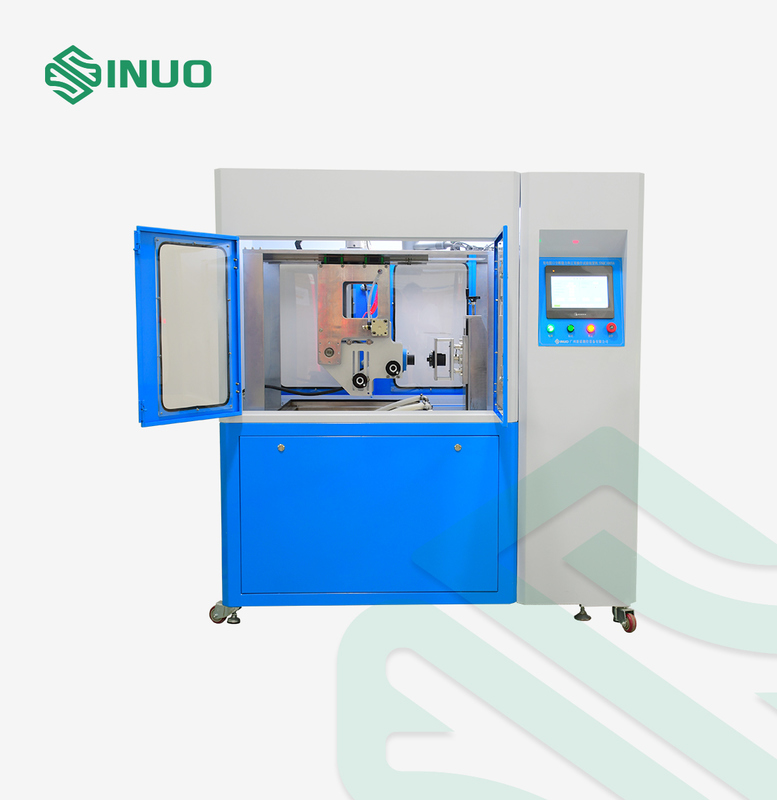

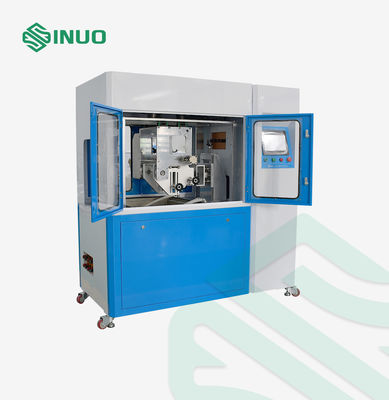

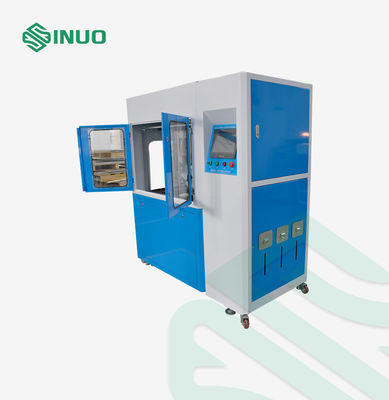

This advanced test system is designed to rigorously evaluate the mechanical, thermal, and electrical durability of electric vehicle charging interfaces and industrial plugs/sockets under real-world operational conditions. Compliant with the latest GB/T and IEC standards, it performs breaking capacity tests, life cycle (normal operation) tests, and mechanical locking function tests to ensure the connectors withstand repeated use and environmental stress.

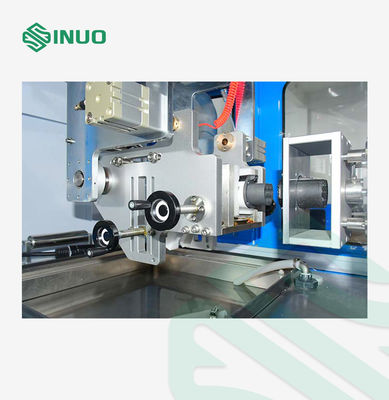

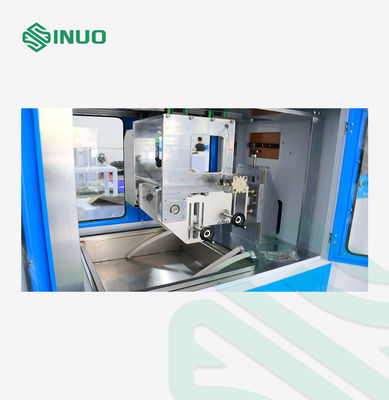

Equipped with a servo-driven actuation system, PLC intelligent control, and adjustable 3-axis fixtures, the system supports automatic plug/unplug motion, programmable test cycles, and force monitoring. It can also simulate environmental contamination such as acid rain, saltwater, and turbid water, providing a complete solution for R&D, quality control, and certification laboratories in the EV and industrial power connector industries.

Key Features:

Automatic plug/unplug and programmable test cycles
Mechanical, thermal, and electrical durability testing
Environmental contamination simulation (acid rain, saltwater, turbid water)
Compliant with GB/T and IEC standards
Ideal for EV R&D, certification, and quality control labs

Technical Parameters

Item	Specification
Product Name	Charging Interface Breaking Capacity and Normal Operation Test Equipment
Standards Complied	IEC 62196-1:2022
Dimensions	Approx. W1000 × D750 × H1200 mm
Weight	Approx. 150 kg
Power Supply (Main Unit)	AC220V ±10%, 50–60Hz, 2kW
Motion Type	Manual or programmable automatic operation
Driving Method	Servo motor + electric rotary motion + auxiliary pneumatic cylinder
Control System	Mitsubishi PLC + 7" HMI touch screen
Test Speed	0–900mm/s, adjustable via touchscreen
Test Frequency	0–10 cycles/min (adjustable)
Test Stroke	0–150mm, resolution: 0.01mm
Pull-out Force Range	0–200N, adjustable, accuracy: 0.1N, hold time: 60s
Force Sensor Range	0–500N, accuracy ≤±0.5% F.S., resolution ≤0.1N
Locking Mechanism Testing	Simulates real-world locking/unlocking operation (0–999999 cycles presettable)
Rotation Feature	Auto 90° flipping for soaking tests
Load Connection	External load connection supported
Contamination Test	Built-in tanks for acid rain, salt water, and turbid water exposure
Soaking Parameters	Programmable: number of soaks, duration, drying time, and cycles
Test Duration	0–999999 cycles presettable
Breaking Capacity Contact Time	0.5–999.9s (presettable, standard requires 2–4s)
Fixture Design	3-axis adjustable fixture, compatible with GB/US/EU connectors
Detection Function	Load break detection with failure alarm and logging
Safety Protection	Grounding, short-circuit, overload, emergency stop

Sample Range	AC/DC EV charging connectors, industrial plugs and sockets
Test Items	a) Mechanical Locking Durabilityb) Breaking Capacityc) Normal Operation

Details

EV Plug and Socket Test Equipment EV Connector Breaking Capacity Test System 0
