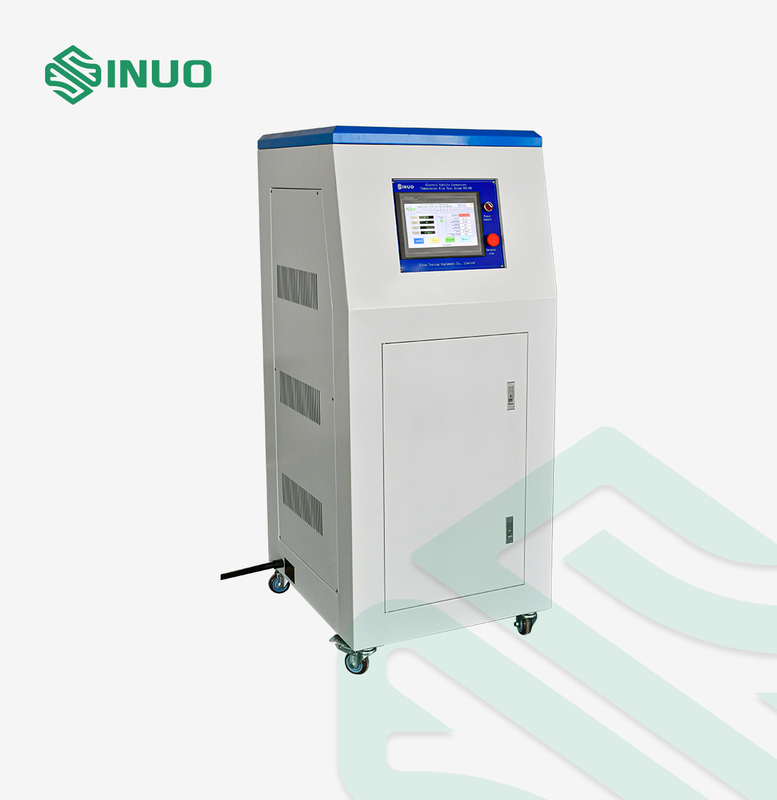

EV Connector Temperature Rise Test System 8-Channel 0-400°C

EV Connector Temperature Rise Test System 8-Channel 0-400°C

Markenbezeichnung:	Sinuo
Modellnummer:	SNQC1006-400A
MOQ:	1
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	10 Sets Per Month

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Place of Origin:

China

Zertifizierung:

Calibration Certificate (Cost Additional)

Temperature Measurement Point:

8 channels

Output Current Mode:

Continuous/ Intermittent

Temperature Measurement Range:

0~400°C

Temperature Scanning Speed:

1 to 255 seconds all channels

Temperature Data Record:

The data can be stored U disk

Intermittent Mode Test Cycles:

1～99999 cycles

Continuous Mode Test Time:

0.01～99.99 hours

Intermittent Mode Test Time:

0.01～99.99 hours

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Hervorheben:

EV connector temperature test system

8-channel EVSE testing equipment

400°C EV connector tester

Beschreibung des Produkts

EV Connector Temperature Rise Test for Electric Vehicle Connectors

Complied Standards & Clauses

This temperature rise test system meets the standard requirements of IEC 62196-3: 2022 clause 24, IEC 62196-1: 2022 clause 24, clause 34.2, 34.4 and 35.4, IEC 60309-1: 2012 clause 22, etc.

Product Overview

It is suitable for detecting the temperature rise test after the charging pile interface plug and socket pass the rated current, and assessing the heating of the surface of the electrical accessories when the load current is connected, and whether the temperature rise of the terminal meets the requirements of the standard.

Technical Parameters

Temperature Measurement Point	8 channels

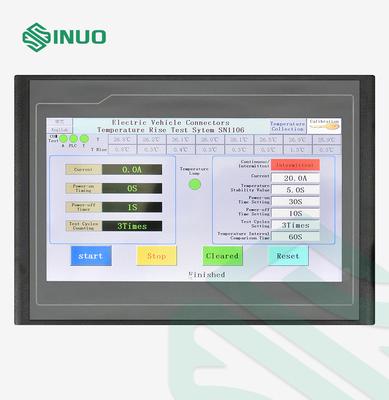

Operation Method	Color humanized touch interface
Output Constant Adjustable Current	AC 0.50～50.00～400.0A(Level 1, can be set)
Output Current Mode	Continuous/ Intermittent
Load Test Output Voltage	Below AC 5V
Current Resolution	0.1A
Ammeter Accuracy	±1%±3 bytes
Voltmeter Accuracy	±1%±3 bytes
Continuous Mode Test Time	0.01～99.99 hours
Intermittent Mode Test Time	0.01～99.99 hours
Intermittent Mode Test Cycles	1～99999 cycles, automatic shutdown when the test cycles reach to the preset value
Temperature Measurement Range	0~400°C, accuracy 0.3% reading + 1°C; resolution: 0.1°C
Temperature Data Acquisition	Configure RS232 communication interface and data record interface
Temperature Scanning Speed	1 to 255 seconds all channels

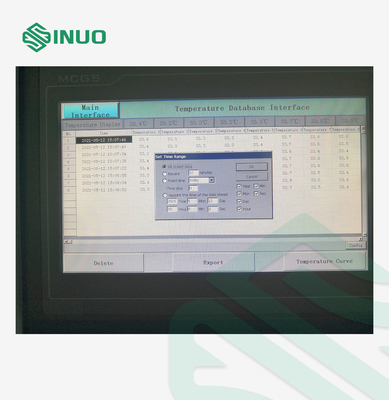

Temperature Data Record	The data can be stored U disk
Temperature Measuring Thermocouple	American Omega T-type 30AWG filament thermocouple, length 2 meters, a total of 8 pieces
Power Supply	Single phase AC220V±10%, 50/60Hz, 3KVA
Equipment Dimensions and weight	Approx. L 800mm* W 680mm* H1610mm, 125KG
