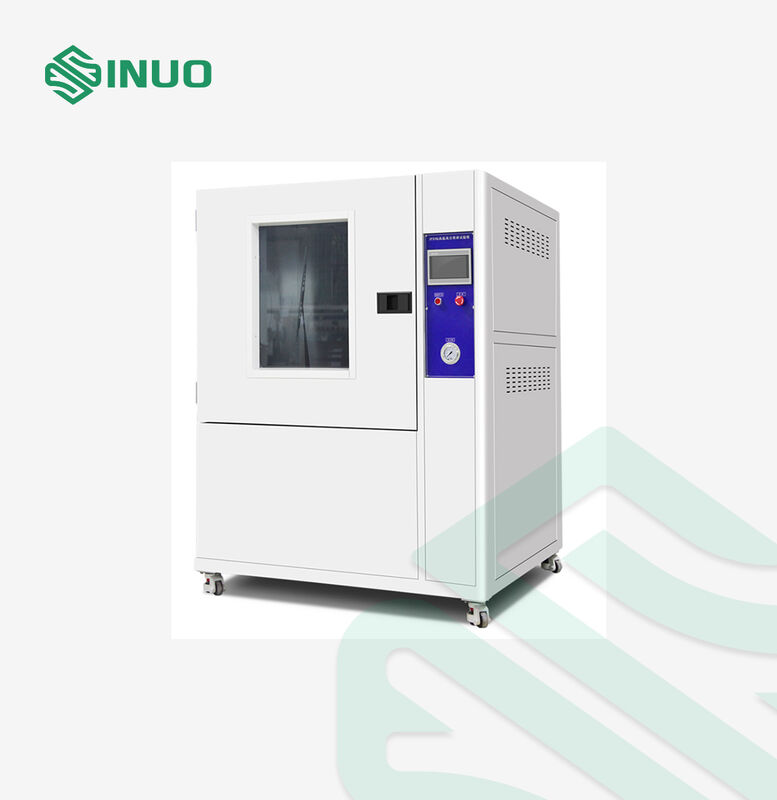

JIS D0203 R1/R2/S1/S2 Waterproof Test Chamber Rain Test Equipment

Markenbezeichnung:	Sinuo
Modellnummer:	SN4428-JISB1000L
MOQ:	1
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	10 Sätze pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Calibration Certificate (Cost Additional)

Innere Abmessungen:

Länge 1000 * Tiefe 1000 * Höhe 1000 mm

Außenmaße:

Länge 1450 * Tiefe 1220 * Höhe 1920 mm

Drehscheiben-Durchmesser:

￠400mm

Plattentellergeschwindigkeit:

1 -23 U/min

Höhe des Drehplattenhebers:

500-800 Millimeter

Gesamtgewicht der Ausrüstung:

250kg

Wasserdruck des Sprays:

S1: 0,1 MPa, S2: 0,3 MPa, Druck einstellbar

Durchmesser des Wassersprühloches:

Φ1,2 mm

Verpackung Informationen:

EXPORTVERPACKUNG

Versorgungsmaterial-Fähigkeit:

10 Sätze pro Monat

Beschreibung des Produkts

JIS D0203 R1/R2/S1/S2 Waterproof Test Chamber Rain Test Equipment

Compliance Standards

The equipment complies with the test requirements of R1, R2, S1, and S2 as specified in JIS D0203.

Product Overview

Application Background:

Water in the natural environment (such as rainwater, seawater, rivers, etc.) causes significant damage to products and materials, resulting in immeasurable economic losses every year. The damage mainly includes corrosion, fading, deformation, reduction in strength, swelling, and mold growth. In particular, electrical products exposed to rainwater may easily suffer short circuits, which can even lead to fires. Therefore, conducting enclosure water protection tests for specific products or materials is an essential and critical procedure.

Typical Applications:

Outdoor lighting, household appliances, automotive components, and other electrical and electronic products.

Equipment Function:

This equipment is mainly used to test the physical and other related performance of products such as electrical and electronic products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their parts under simulated rainfall conditions. After testing, the results are evaluated to determine whether the product performance meets the required standards, providing a basis for product design, improvement, verification, and factory inspection.

Technical Parameters

Technical Specifications	Basic parameters
	Inner box dimensions	Length 1000 * Depth 1000 * Height 1000mm
	External dimensions	Approximately Length 1450 * Depth 1220 * Height 1920mm
	Turntable diameter	￠400mm
	Maximum load capacity of the turntable	50KG
	Turntable lifting height	500-800 mm
	Turntable speed	1 -23 r/min (precisely adjustable)
	Turntable rotation method	Always rotating forward / Alternating between forward and reverse
	Test time	0-999 min
	Total equipment weight	Approximately 250kg
	Japanese Standard R1/R2 - Technical Specifications
	Sprinkler test spiral pipe	Customized strictly according to the requirements of JIS D0203 water spray test drawings.
	Water pressure of the spray	R1: 0.01MPa, R2: 0.03MPa, pressure can be set.
	water jet hole	As shown in the diagram, the spray nozzles should be machined to meet the JIS D0203 water spray test requirements.
	Number of spray holes	2 pcs
	The sprinkler pipe rotates around its axis	Adjustable from 1 to 23 r/min
	Japanese Standard S1/S2 - Technical Specifications
	Spray test swivel tube	Customized strictly according to the requirements of JIS D0203 water spray test drawings.
	Water pressure of the spray	S1: 0.1MPa, S2: 0.3MPa, pressure can be set.
	Water spray hole diameter	Φ1.2mm
	Number of spray holes	40 pcs
	The water spray pipe rotates around its axis	Adjustable from 1 to 23 r/min
	Electrical parameters
	Equipment power supply	380V；50Hz
	Equipment power	2.0KW
	Safety protection function	Leakage protection, water shortage protection, short circuit protection

Product Details

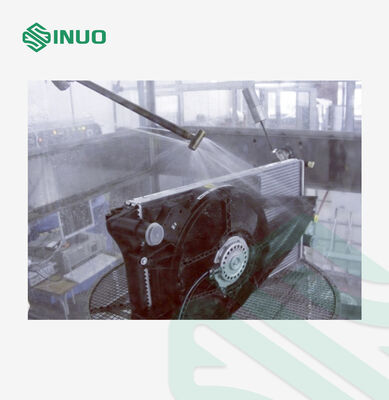

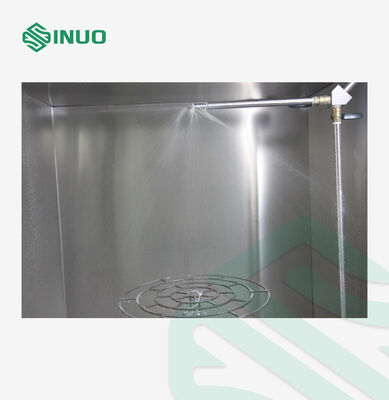

JIS D0203 R1/R2/S1/S2 Waterproof Test Chamber Rain Test Equipment 0

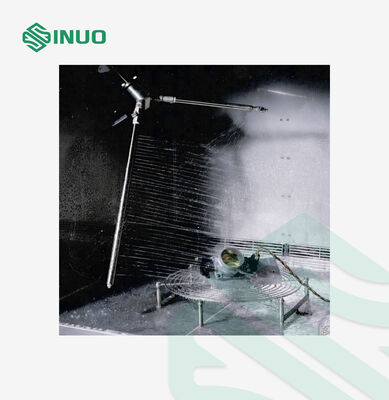

JIS D0203 R1/R2/S1/S2 Waterproof Test Chamber Rain Test Equipment 1
