Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber

Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber

Markenbezeichnung:	Sinuo
Modellnummer:	SN4416-1400
MOQ:	1
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	10 Sätze pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

Calibration Certificate (Cost Additional)

Innenkammer:

L1400*B1400*H1400mm

Äußere Kammer:

L1880*B4200*H2200mm

Drehscheiben-Durchmesser:

￠200mm und 600mm

Plattentellergeschwindigkeit:

1 -5 r/min (verstellbar)

IPX6 Düsenstrahlöffnung:

12,5 mm

IPX5 Düsenstrahlöffnung:

6,3 mm

IPX6 Strahlstrom:

100 ± 5 L/min

IPX5Jet-Fluss:

12.5 ± 0.625

Verpackung Informationen:

Exportverpackung

Versorgungsmaterial-Fähigkeit:

10 Sätze pro Monat

Beschreibung des Produkts

Oscillating Tube Rain IPX3 IPX4 IPX5 IPX6 Waterproof IP Code Test Chamber

Complied Standards & Clauses

Conforms to IEC60529:1989 +A1:1999 +A2:2013 <Degrees of protection provided by enclosures (IP Code)> IPX3, IPX4, IPX5, IPX6 test, figures 4 and figure 6.

Product Overview

Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damages caused mainly include corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.

General application areas: outdoor lighting, household appliances, auto parts and other electronic and electrical products.

Equipment function: The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated climatic conditions. After the test, judge whether the performance of the product meets the requirements by the verification, so as to facilitate the design, improvement, verification and factory inspection of the product.

Technical Parameters

Basic Parameters
Inner Chamber Size	L1400W1400H1400mm
Outer Chamber Size	L1880W4200H2200mm
Allowed dimensions of products	Length and width ≤1000mm, height ≤100mm
Turntable Diameter	￠200mm and 600mm
Turntable Maximum Load Bearing	≤20KG
Turntable Speed	1-5r/min (adjustable)
Turntable Rotation Method	Always positive / positive and negative alternate
Flow Adjustment Method	Manually adjust flow by adjusting flow meter on the panel
Test Time	0-999 min
Power supply for sample	Configured with a waterproof socket inside the chamber for client to power on sample during test
Water supply for testing	With a built-in water tank of approx. 90L, the water can be recycled
Total Weight	Approx. 450kg
Required site place	4.4m(D)2.2m(W)2.4m(H)

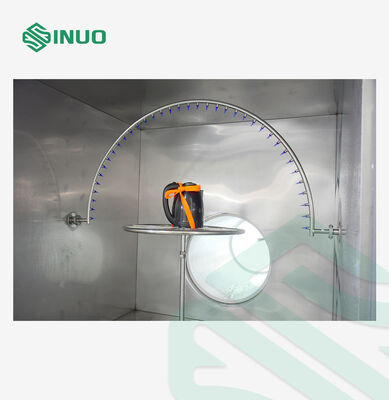

IPX34 Oscillating Tubes Parameters
Oscillation Tube	R200 mm and R400mm and R600mm
Distance between Nozzle Sample	Within 200mm
Spray Aperture Spacing	50 mm
Oscillating Tube Swing Angle	±60° (IPX3), approximately ±160°(IPX4) (Note: standard requires IPX3:120°; IPX4: almost 360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
Angle Between Two Holes	120°(IP3) 180°(IP4)
Needle Hole	φ0 .4 mm
Oscillating Speed	IPX3: 15times/min; IPX4: 5times/min
Water Flow of Each Hole	0.07 L/min +5%
Spray Pressure	80-150Kpa
