Einzelheiten zu den Produkten

Haus Produits

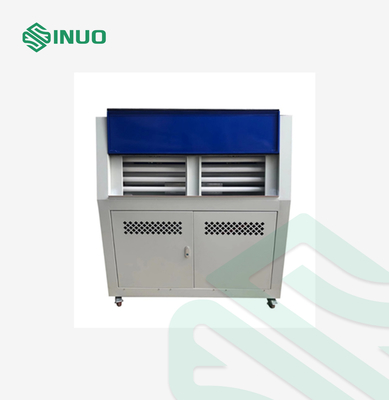

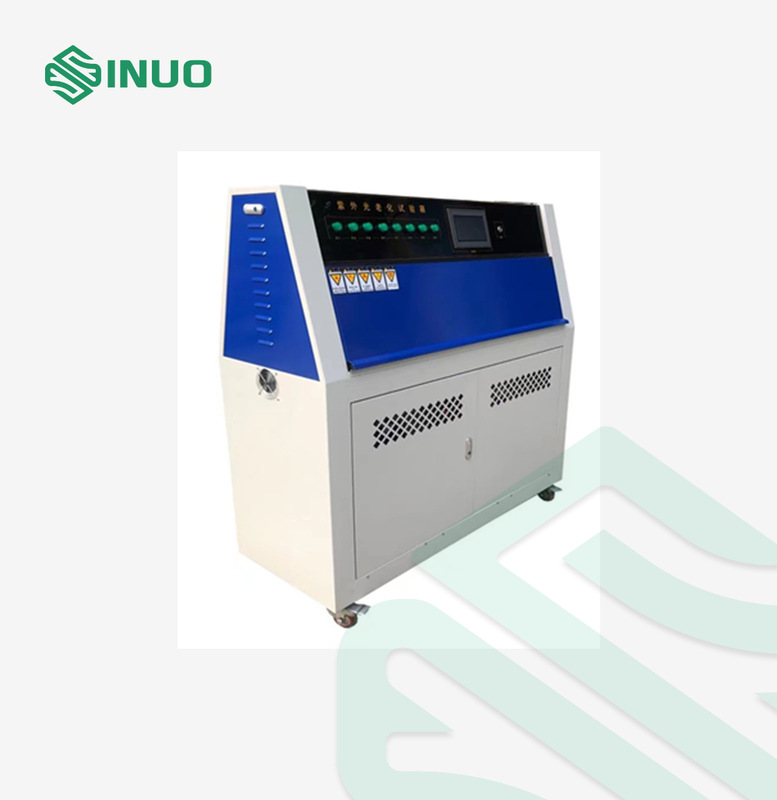

Environmental Testing Chamber UVC Aging Test Chamber UVC 254

Environmental Testing Chamber UVC Aging Test Chamber UVC 254

Markenbezeichnung:	Sinuo
Modellnummer:	SN882C
MOQ:	1
Preis:	Customized
Zahlungsbedingungen:	T/t
Versorgungsfähigkeit:	20 Sätze/Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

Calibration Certificate (Cost Additional)

Bestrahlungsbereich:

UVC254nm: 5W/m2 bis 10W/m2

Dienstleben:

2000 Stunden

Ausrüstungsgewicht:

170 kg

Ausrüstungsabmessungen:

147*56*135cm (W*D*H)

Gesamtbelastungsfläche:

5175 cm2

Temperaturbereich der Tafel:

40°C bis 80°C

Lichtquelle:

UVC 254

Wasserdruck:

0.15Mpa bis 0,3Mpa

Verpackung Informationen:

Sperrholzfall

Versorgungsmaterial-Fähigkeit:

20 Sätze/Monat

Beschreibung des Produkts

Environmental Testing Chamber UVC Aging Test Chamber UVC 254

Complied Standards & Clauses

The main applicable standards for UV-C are GB4706.1 GB/T 17554.1.

Equipment Overview

Using low-pressure mercury lamp UV-C (254nm) as the radiation source, by changing and controlling the light irradiance, blackboard temperature, condensation, rain, etc., the comprehensive conditions of outdoor ultraviolet light, humid heat condensation and rainfall are simulated, and the aging test is performed on the samples. The equipment mainly emits ultraviolet light at 254nm and is mainly used for the aging assessment of internal materials of household appliance disinfection equipment and the aging assessment of aerospace materials outside the atmosphere.

Features:

1. Use mercury lamp as light source, and simulate outdoor UV, humid heat condensation or rainfall and other comprehensive conditions by changing and controlling light irradiance, blackboard temperature, condensation or rain, and conduct aging test on samples.

2. 6 editable test methods, users can set various test parameters and processes according to the required test standards and needs.

3. The test chamber automatically cycles according to the test parameters, and automatically stops when the test ends.

Complies with the ultraviolet test requirements in standard ETAG 002.

Test cycle process time adjustable range: 0~9999 hours

4. Use UVC254nm ultraviolet light tube, the light radiance control range is:

5. Condensation or exposure to rain:

Blackboard temperature is automatically controlled.

Safety protection of water level and water temperature.

6. 24 sets of sample racks, 75*300mm, that is, two 75*150mm sample racks.

7. Protection:

Automatic shutdown and alarm when the box is over-temperature.

Automatic shutdown and alarm when the water level in the tank is low.

Overcurrent protection.

Technical Parameters

●Light source: UVC 254

●Service life: 2000 hours

●Irradiance range: UVC254nm: 5W/㎡~10W/㎡

●Blackboard temperature range: 40℃~80℃

●Condensation:√

● Rain:√

●Sample racks: 24 (300mm*75mm) can hold 48 standard samples.

●　Sample rain: √

●　Total exposure area: 5175c㎡

●　Dimensions: Width: 147cm

Depth: 56cm

Height: 135cm

●　Weight: 170KG

●　Power supply: AC220V, 10A, well grounded

●　Water source: National laboratory level 3 water, water pressure: 0.15Mpa~0.3Mpa

●　Configuration: 1 UV aging test chamber, 8 UVC lamps (Not equipped with: pure water machine)

Details

Environmental Testing Chamber UVC Aging Test Chamber UVC 254 0
